Windlass HWC3500 24V 2 chainwheel
$1.00
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Processor
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Display
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
RAM
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Storage
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Video Card
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Connectivity
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Features
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Battery
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
General
| Product variant |
Windlass HWC3500 HYD 2 drum+1 (EEPN: 01.01.0192) ,Windlass HWC3500 12V port 1 drum+2 (EEPN: 01.01.0193) ,Windlass HWC3500 24V port 1 drum+2 (EEPN: 01.01.0194) ,Windlass HWC3500 HYD port 1 drum+2 (EEPN: 01.01.0195) ,Windlass HWC3500 HYD port 1 drum+1 (EEPN: 01.01.0131) ,Windlass HWC3500 HYD 2 chainwheel (EEPN: 01.01.0134) ,Windlass HWC3500 24V port 1 drum+1 (EEPN: 01.01.0130) ,Windlass HWC3500 24V 2 drum+2 (EEPN: 01.01.0136) ,Windlass HWC3500 12V port 1 drum+1 (EEPN: 01.01.0129) ,Windlass HWC3500 12V 2 chainwheel (EEPN: 01.01.0132) ,Windlass HWC3500 HYD 2 drum+2 (EEPN: 01.01.0137) ,Windlass HWC3500 12V 2 drum+2 (EEPN: 01.01.0135) ,Windlass HWC3500 24V 2 chainwheel (EEPN: 01.01.0133) |
|---|
Description

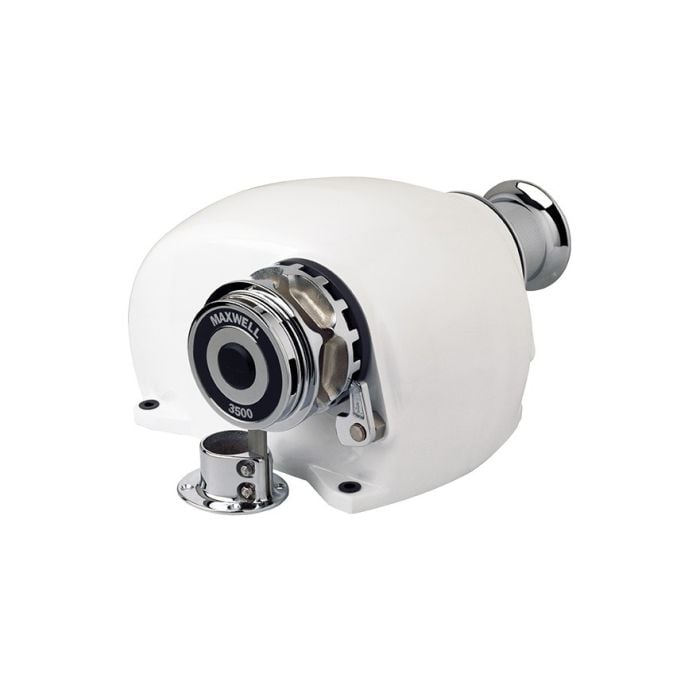

Maxwell Windlass HWC3500 24V 2 chainwheel 1200W (8-13 mm short link chain) Note: specify chainwheel size at the time of order
| Model | 3500 |
| Maximum pull | 1590 kg (3500 lbs) |
| Static hold | 2200 kg (4840 lbs) |
| Chain short link | 10-13 mm |
| Line speed (normal working) | 10 m/min or 33 ft/min |
| Power supply (dc) | 12 or 24V |
| Motor (watts) | 1200W |
| Net weight (electric) | 57 kg (125 lbs) |
| For hydraulic version: | |
| Hydraulic pressure | 138 bar or 2000 psi |
| Hydraulic flow | 40 lpm or 11 US gpm |
| Net weight (Hyd) | 49 kg (107 lbs) |
Note: 3500 HWC Suitable for 8-13mm Chain (Chainwheel selected separately)
Electric windlasses include motor, gearbox and reversing solenoid. Hydraulic windlasses include motor and gearbox. Electrical accessories need to be ordered separately
On standard configuration (SCW) chainwheel is mounted on starboard side, can be installed on port side on request.
Note: HWC automatic windlasses will be supplied including chainwheel. If you can’t find a chainwheel that fits your chain please contact Exalto Emirates
